Front Service IP65 RGB SMD3535 P10 Led Display Module

Product Categories

Shenzhen Xing Guang Cai Technology Co., Limited

Contact Now

Brand Name : XGC

Model Number : P10

Certification : CE ,FCC, ROSH CCC

Place of Origin : Shenzhen,China

MOQ : 1PCS

Price : USD11-USD20/pcs

Payment Terms : T/T、, Western Union、L/C、, D/A、, D/P, MoneyGram

Supply Ability : 5000㎡ per month.

Delivery Time : 7-15 days

Packaging Details : Plywood case、flight case

Product name : LED module P10

Warranty : 2 Years

Brightness : 7500CD-8000CD/sqm

Led chip : Epistar SMD3535

Module size : 320*160mm

Application : street,marketing,station,etc.

Weight : 400g/pcs

Thickness : 17.5mm

Contact Now

Outdoor IP65 RGB SMD3535 front service LED module P10 energy saving LED display screen

Advantage of solar energy saving screen

1. Energy saving screen adopts self-encapsulated high-brightness LED light.

2. Original energy-saving technology, low power and low voltage drive integrated circuit.

3. Solar power supply, brightness automatic regulation, saving electricity and reducing operating costs.

4. Multiple waterproof design, waterproof and dustproof grade IP65/IP54, safer to use, specially designed for outdoor nake

Product Parameter
product	Item	specification parameter
Module Parameter	Pixels Pitch , Resolution rate , Size	10mm,3216Dots,320160mm
	Pixel LED , LED packaging	DIP346 ( Hongzheng A1, Gold wire lamp )
	Working voltage, Module Power	AC 5V(24V AC power),8W
	Driving IC, Driving way	energy saving IC, 1/4 scan
	HUB	HUB75
Cabinet Parameter	Material, Cabinet Weight(kg/Cabinet)	Cast aluminum, 33kg/ Cabinet
	Resolution rate, size, Module quantity	9696 Dots,960960130mm,36
	Density	10000 Dots/㎡
	White balance ,Color temperature	5000 CD/㎡,6500 K
	view angel, Non-Flatness, Module interva	H/V: 110°/50°,<1mm,<1mm
	Maximal power/m2,Average power/m2	100W/㎡,34W
	Frame frequency, Refresh frequency, Gray	60Hz,1920Hz,14bit
	Control system, System supports	Colorlight,Nova,Listen Vision,sofa ware XP,WIN 7 or the higher windows system
	Working temperature, Protection grade	-20℃ - +50℃,Front/back:IP65/IP54

HS code: 8528591090

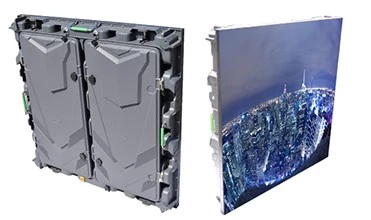

960X960MM Rental LED Cabinet:

Front Service IP65 RGB SMD3535 P10 Led Display Module

Regular carton package:(Plywood case will be extra cost.)

Front Service IP65 RGB SMD3535 P10 Led Display Module

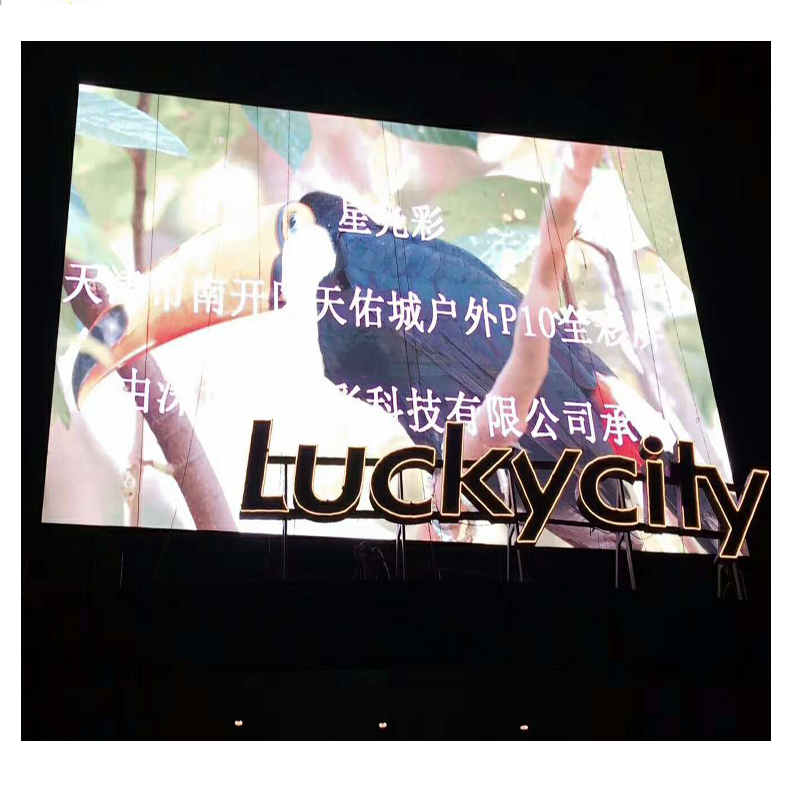

Common outdoor product project case:

Front Service IP65 RGB SMD3535 P10 Led Display Module
