Advertising panel P3.91 P4.81 P6.25 outdoor display wall 4.81mm led screen
All of products are certified by CE FCC , Rohs ,CCC
Our main products :LED module & LED display
Fine pitch series :P1.25 ,P1.53,P1.56,P1.667,P1.86, P1.875
Indoor full color series :P2, P2.5 ,P3 ,P3.91 ,P4 ,P4.81 ,P5
Outdoor full color series : P2.976 ,P3 ,P3.91 ,P4 ,P4.81 ,P5, P6, P6.67, P8 ,P10
Welcome to visit our website : www.szxgcled.com
Module specification
| Item | P3.91 | P4.81 |
| Pixel pitch | 3.91mm | 4.81mm |
| Module size | 250mmX250mm | 250mmx250mm |
| Module resolution | 64X64pixels | 52X52pixels |
| LED type | SMD1921 | SMD2727 |
Cabinet specification
| Cabinet size | 500mmX500mm / 500mmX1000mm | |
| Material | Die casting Aluminum | |
| Weight | 7kg / 12.8kg | |
Screen specification
| Pixel density | 65536dots/m² | 43264dots/m² |
| Brightness | 4000~5000cd / m² | 4000~4500cd/m² |
| Gray level | 14bit | 14bit |
| Refresh rate | 1920Hz | 1920Hz |
| IP rating | IP65 | IP65 |
| Ave/Max power consumption | 300W/m²~800W/m² | 300W/m²~800W/m² |
| Viewing distance | 4~30m | 5~40m |
| Best Viewing angle | H160 ° V140° | H160 ° V140° |
| MBTF | >5000hours | >5000hours |
| The rate | <0.0001 | <0.0001 |
| Environmental | Outdoor | Outdoor |
| Lifespan | 100,000hours | 100,000hours |
| working voltage | 110 V±15%
or 230 V±15% | 110 V±15%
or 230 V±15% |

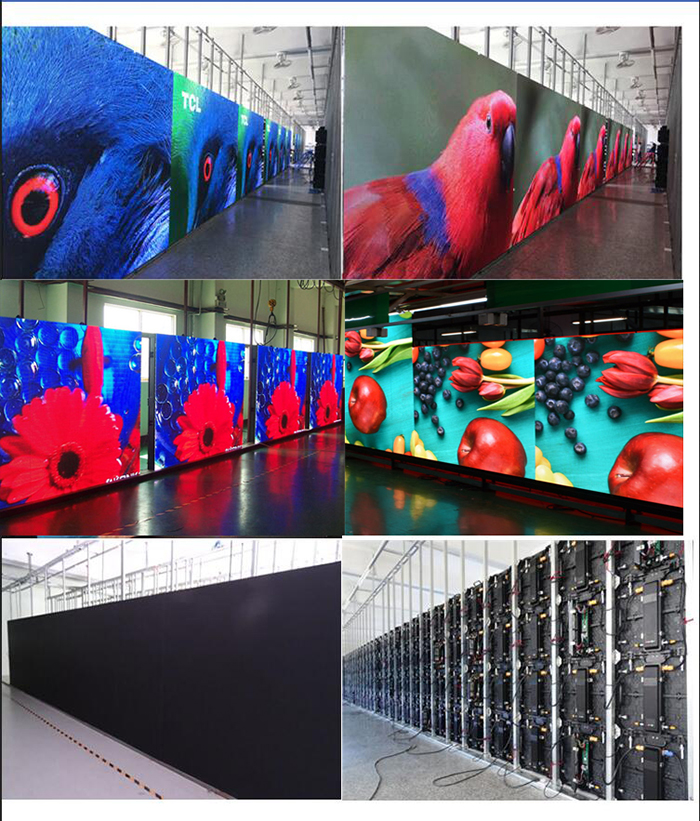

The workshop
FAQ
1) What kind of display do we provide ?
We have indoor /outdoor /mobile LED /Rental led display /LED stage /Advertising LED display for your chooice .
2) How can I place an order?
Please provide the details of your requirements as clear as possible . So we can send you the offer at the first time .
For designing or further discussion, It is better to contact us with Skye /Email/Phone , in case of any delays .
3) What about the lead time for an order ?
Always :10~17days , as your order quanlity , sometimes we have stock , can delivery within 7 days
4) What about the warranty ?
We have three years quality guaranteed , spare parts such as led module, receiving card , control card
power supply are damaged not cause of artificial damaged , then it's free maintenance and ship back new
ones for replacement .
5) How about the quality ?
Our led products must be testing of at least 72 years before from purchase raw materials to ship , Each
step has strict quality control systems to ensure LED display with good quality .
6) Can you offer a technical support ? Since it's my first time .
We provide free training for our customer, teach the client how to set up screens , make configuration of
parameters ,broadcast the videos through Novastar and colorlight or Linsn controlsystems, our engineer can
directly teach you how to control , or help you to done if you are really don't know how to control (Our Engineer
can text English , we can saving more time )
Product Tags:
|
|
Outdoor Advertising 1R1G1B 3840Hz P4.81 Led Wall Screen Images
|
